Specifications
Conductor AWG: 20
Conductor Material: Tinned Copper
Conductor Construction: Stranded 20×0.18±0.008mm²
Conductor OD: 0.93±0.08mm
Insulation: PVC(Polyvinylchloride)
Over Dia.: 2.45±0.1mm
Jacket Colour: Blue
Rated Temperature: 105°C
Rated Voltage: 300V
FLAME TEST: VW-1
Packaging: Blue 25ft per reel
Features

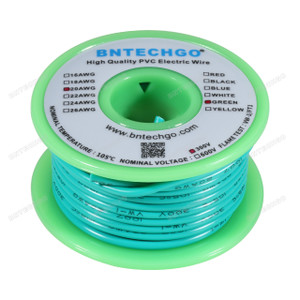

Flexible 1007 20 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath.
Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C.
Easy handling,stripping,and termination: Low-fray design.
Flame retardant: VW-1.
This hook-up wire is recommended for internal wiring of electrical or electronic equipment.
